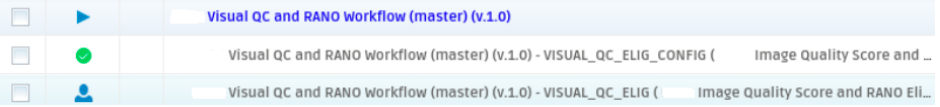

After starting, some analyses require that you take additional actions before they can proceed to completion. “Manual Steps” are indicated in the “Analysis” tab by a blue silhouette figure as shown below.

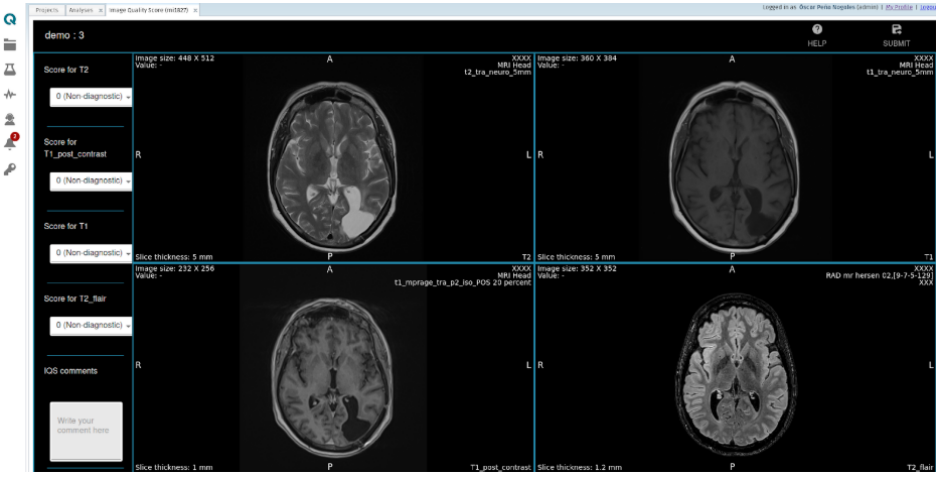

In order to access the Manual Step, click the blue silhouette figure. The Manual Step will open in a new tab, as shown below.

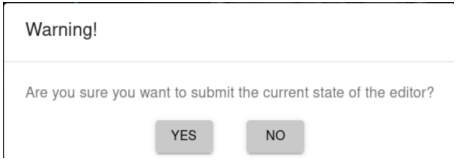

Depending on the analysis, you can “Save” your progress and exit the Manual Step before returning at a later time. In all cases, once satisfied with the manual inputs, click “Submit” on the upper-right corner before confirming the action in the “Warning!” pop-up below. Thereafter, the analysis will continue to progress.
Example analysis types which involve a Manual Step include lesion segmentation and/or editing, visual image quality scoring and coordinate annotation.
The “Save” button in a Manual Step might not be working in unsupported browsers. Refer to this article for more details.
In some analyses, namely some workflows, it is necessary for the QC Status of a component analysis to be defined before the workflow can proceed to the next component. This is distinct from previously explained manual steps in that the status of the analysis component will display a green circle, indicating completion, and while the overall workflow still appears to be running, the proceeding component will not

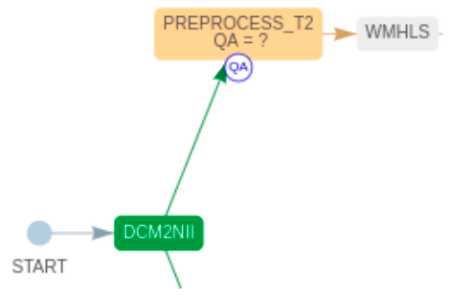

be scheduled. Analyses that require this “QA” step are indicated in the workflow model by a blue circle (see figure below), accessible via the Analysis Information tab. For instructions on defining an analysis’ QC Status, see this article.
