      Accessing analysis results

      Visualizing Analysis Results

      To visualize the results of a completed analysis, go to the “Analyses” tab and check the row corresponding to the analysis of interest. Ensure that only the row of the analysis of interest is selected; selecting multiple rows can open the incorrect analysis.

      1. Click on the ‘Analysis’  tab
      2. Check an analysis you want to browse
      3. Click on the Results
      4. Select Show Results

      You can also access the results by clicking over the analysis.

      The results presented depend on the analysis configuration. Some analysis results will be presented in a new tab, as shown below.

      In other cases, a pop-up window appears listing the output result files generated. You are able to “Download Selected” files to your local computer or to “Visualize” them within the QMENTA Viewer.

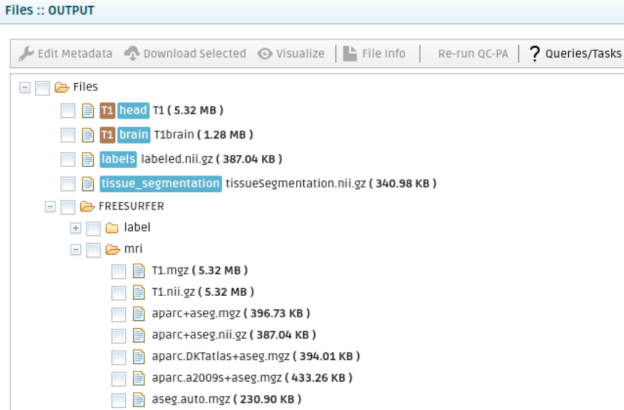

      The list of result files (see figure below) may also be accessed by again clicking “Results”, followed instead by “Result Files”.

      Analysis Information

      You can inspect the information pertaining to any analysis listed in the “Analyses” tab, regardless of its state, by going to “Results” and then “Analysis Information”. A new tab will open. The following summary information is presented:

      • A graphic visualization of the analysis flow if the selected analysis was a workflow.
      • The overall status of the analysis.
      • A link to view the full analysis progress, including timestamps.
      • The analysis name as well as the QMENTA Project in which it is executed.
      • The QC Status.
      • The input data and settings, configured when the analysis was started.

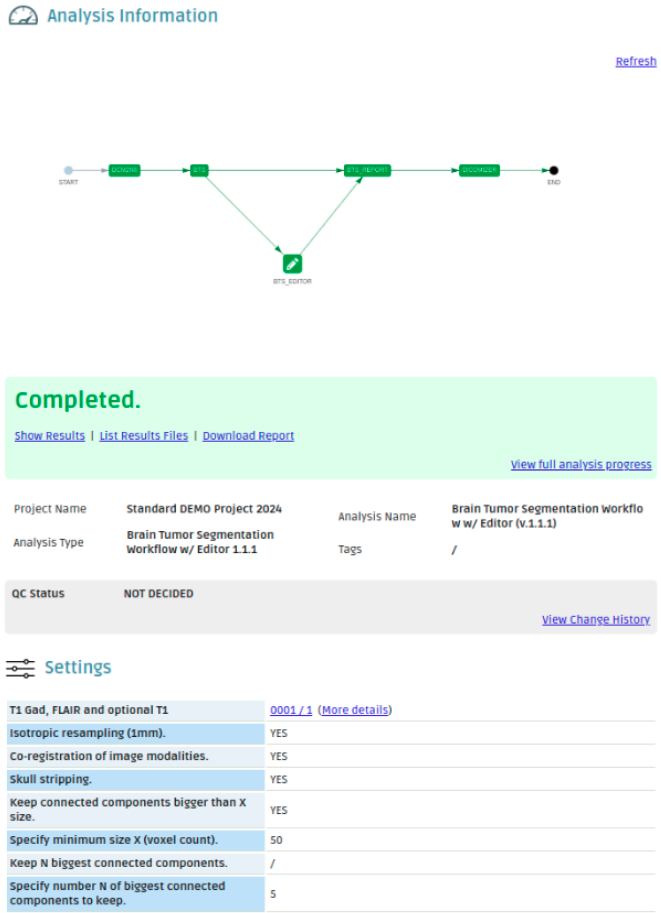

      An example of the “Analysis Information” of a workflow is shown below.

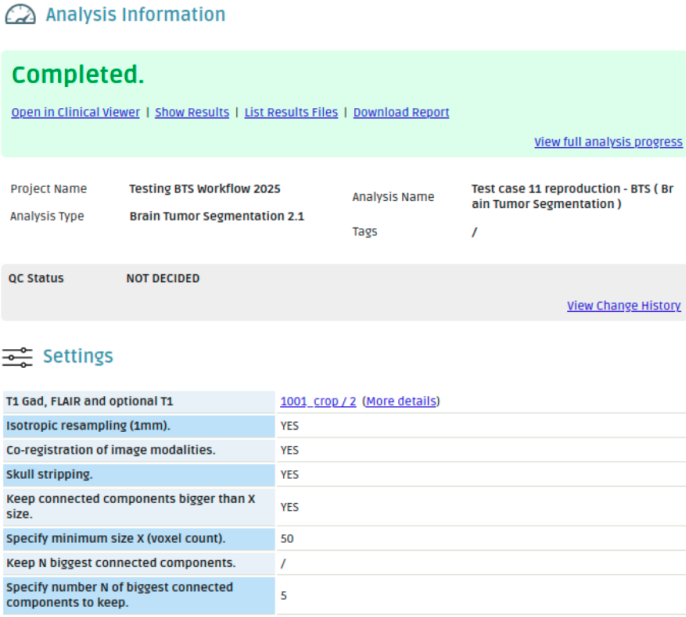

      An example of the “Analysis Information” of a tool is shown below.

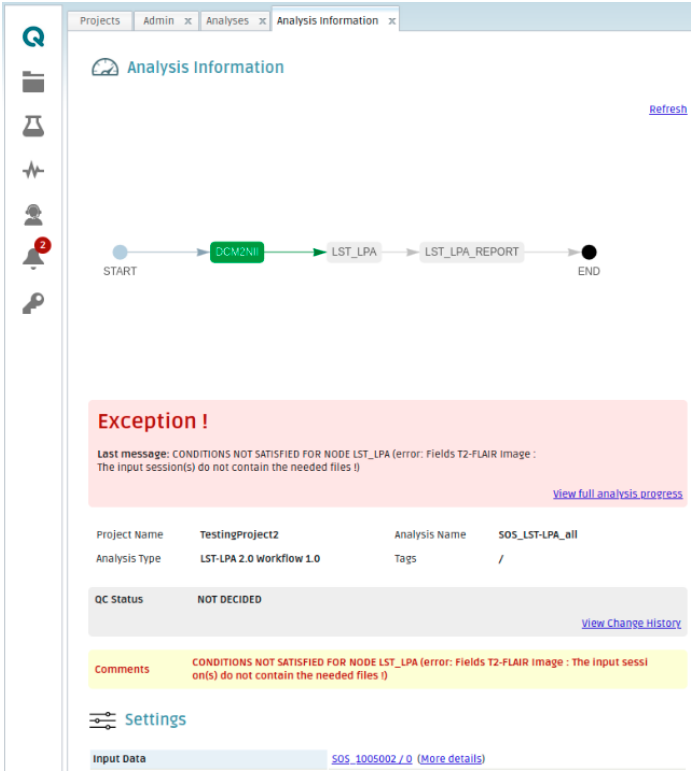

      An example information of a failed workflow is shown below. You can see how the workflow is missing the “T2 flair” image to continue execution of the “LST_LPA” tool. Errors of failed tools are shown similarly.

       View full analysis progress

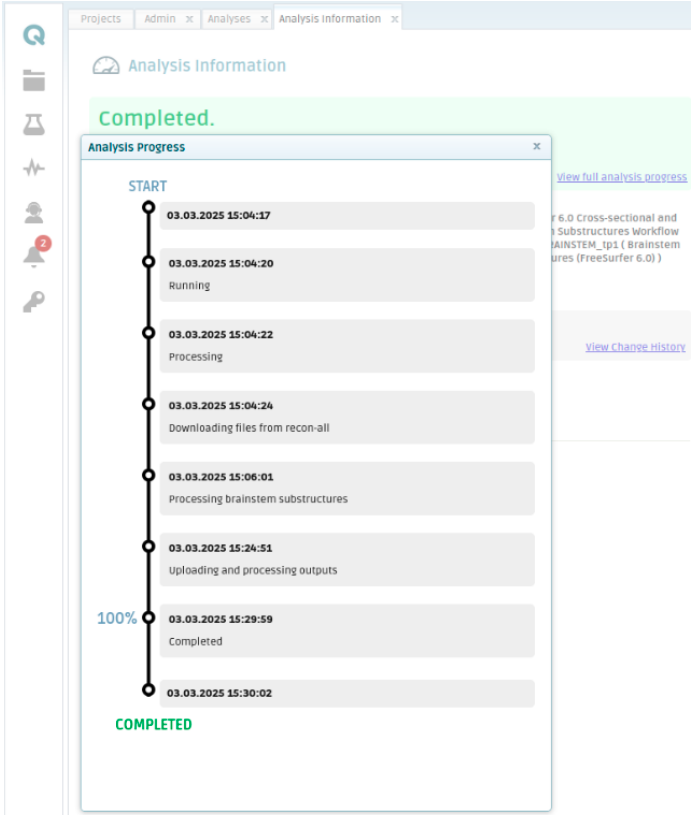

      The “View full analysis progress” button opens the pop-up window “Analysis Progress” which allows for a detailed visualization of the progress of the analysis, as shown below. This pop-up window also might facilitate understanding of the reason why a certain analysis failed, particularly in tools.

      Get Report

      For some types of analysis, you have the option to download a formatted PDF document containing the analysis results. To do so select ‘Get Report’ as shown below.


      Here is an example of the FreeSurfer report:
